Vibro Meter 200-560-000-016

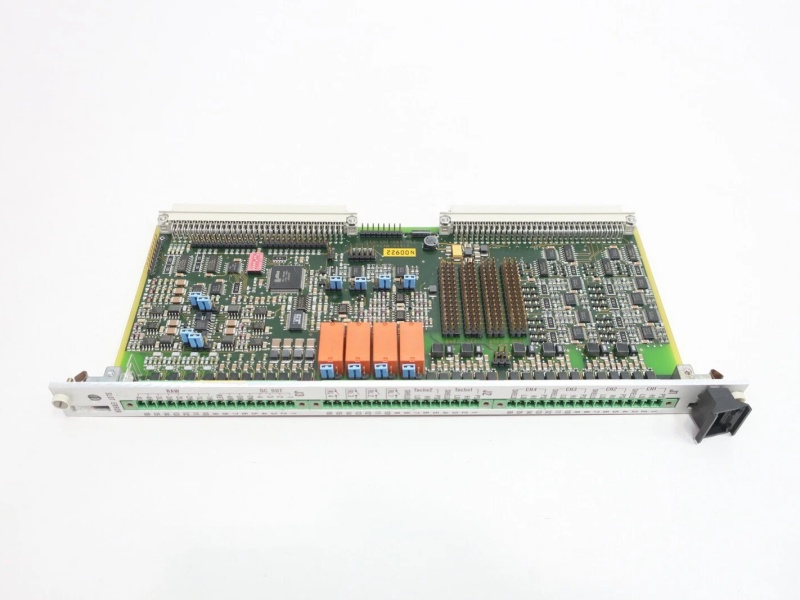

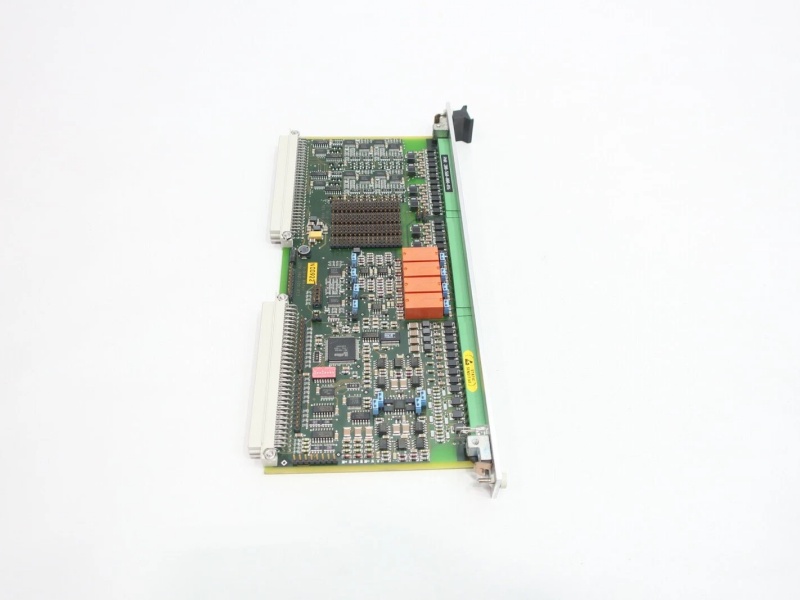

Vibro-Meter 200-560-000-016 is an IOC4T input/output card from the Vibro-Meter VM600 series, designed specifically for vibration monitoring and protection of industrial machinery.
Main Technical Specifications (excerpt from product documentation)
- Measurement Channels: 4 dynamic signal channels + 2 speed (rotation) channels
- Signal Types: Acceleration, velocity, displacement
- Measurement Range:
- 0.1 Hz ~ 10 kHz
- ±2 g (acceleration)
- ±100 mm/s (velocity)
- ±1 mm (displacement)
- Accuracy / Resolution: ±2% accuracy, 0.1 Hz resolution, 1 kHz sampling rate
- Operating Temperature: −20°C to +55°C, protection rating IP65
- Dimensions / Weight: 88.9 mm × 30.5 mm × 111.1 mm, approx. 0.3 kg
Functions and Applications
- Provides input/output through a 48-pin terminal block (48 terminals total)
- Used together with MPC4 mechanical protection cards for real-time vibration monitoring of rotating equipment such as motors, pumps, compressors, and fans, enabling early fault detection in bearings, gears, and drive systems
- Supports 4–20 mA output, enabling integration with PLC/DCS systems; commonly used in industries such as power generation, petrochemicals, metallurgy, paper production, and pharmaceuticals for equipment condition monitoring
Installation and Use
- Installed via terminal block on a VM600 rack; supports aluminum alloy housing
- Housing size approx. 130 mm × 130 mm × 70 mm, weight approx. 1 kg, suitable for cabinet installation
- Equipped with ATEX-certified explosion-proof features, making it suitable for hazardous areas
In summary, the Vibro-Meter 200-560-000-016 is a high-precision, environmentally robust vibration monitoring card compatible with various industrial control systems. It is ideal for real-time condition monitoring and fault prediction of critical machinery.
Main brand :
ABB Allen-Bradley Alstom Bently GE MOOG
Schneider Woodward HIMA Honeywell Emerson Foxboro
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
Q&A of our advantages:
Q: What is our primary advantage in product availability?
A: Our offers a wide range of industrial automation products with a high level of availability, ensuring quick delivery and minimal downtime.
Q: How does our ensure competitive pricing?
A: Our provides competitive pricing by leveraging strong supplier relationships and optimizing its supply chain.
Q: What sets our customer service apart?
A: Our customer service is distinguished by its knowledgeable support team and commitment to providing timely and effective solutions.
Q: How does our handle product quality?
A: Our ensures product quality through rigorous testing and quality control processes, backed by reliable manufacturer partnerships.
Q: Can our assist with obsolete or hard-to-find components?
A: Yes, our specializes in sourcing obsolete and hard-to-find components, helping customers maintain and upgrade their systems.
Welcome to inquiry,my friend!
What is DCS？
A Distributed Control System (DCS) is a computer-based system used to automate, monitor and control complex industrial processes. It is essentially a large network of controllers that are distributed throughout a plant or facility, all working together to keep the process running smoothly.
Here’s a breakdown of how a DCS system works:
- Sensors:These devices collect data from the physical process, such as temperature, pressure, flow rate, and level.
- Controllers:These are programmable devices that receive data from the sensors and send control signals to actuators.
- Actuators:These devices take physical action based on the signals they receive from the controllers, such as opening or closing valves, starting or stopping pumps, or adjusting heater settings.
- Operator stations:These are the human-machine interfaces (HMI) that allow operators to monitor the process, make changes to setpoints, and troubleshoot problems.
- Communication network:This network connects all of the devices in the DCS system together, allowing them to share data and control signals.
