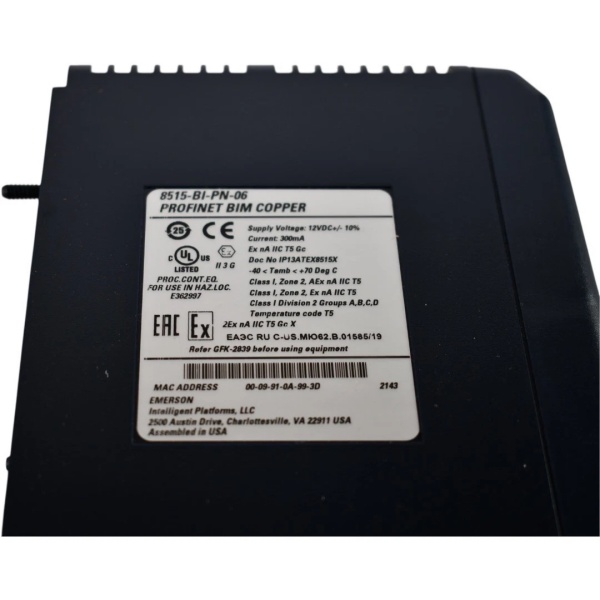

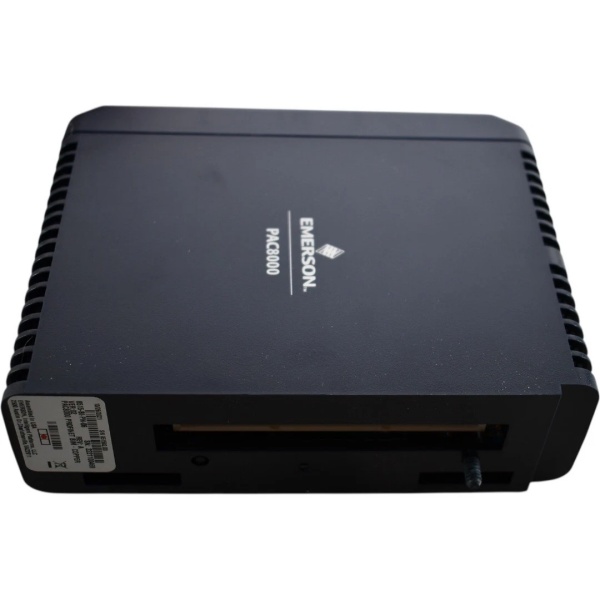

Emerson 8515-BI-PN-06
Emerson 8515-BI-PN-06 Technical Specifications
| Item | Description | |
|---|---|---|
| Model | 8515-BI-PN-06 – Emerson Network Interface Module (part of the DeltaV Smart Switch series) | |
| Main Function | Provides 10/100/1000 Mbps Ethernet interfaces for DeltaV control networks; supports gateway functions for industrial communication protocols such as PROFIBUS DP, DeviceNet, HART, and Modbus TCP. | |
| Power Supply | 24 V DC (also supports 24 V AC ±10%) | |
| Power Consumption | Maximum approx. 25 VA (including internal switching chip and interface circuitry) | |
| Physical Dimensions | Approx. 73 mm × 138 mm × 115 mm (W × H × D); DIN rail mounting | |
| Weight | ≈ 0.8 kg (about 800 g) | |
| Operating Environment | Temperature: -20 °C to +65 °C; Humidity: 0 % – 80 % RH (non-condensing) | |
| Protection Rating | IP 20 (protection against electric shock; suitable for cabinet installation) | |
| Number of Ports | 6 Ethernet ports (corresponding to “PN-06” = 6-Port Network); each supports 10/100/1000 Mbps auto-negotiation | |
| Supported Protocols | Ethernet/IP, Modbus TCP, PROFINET, PROFIBUS DP, DeviceNet, HART, OPC UA (via DeltaV software stack) | |
| Mounting Options | DIN rail or 19-inch rack (with optional bracket) | |
| Certifications | CE, UL, CSA; compliant with IEC 61850 and EN 61326 (EMC standards) | |
| Management | Managed through DeltaV Network Device Command Center (NDCC) for automatic discovery, configuration, and firmware updates; supports SNMP v2/v3 for remote monitoring | |
| Optional Accessories | Port mirroring module, fiber converter card, redundant power supply unit (optional) |
Conclusion
The Emerson 8515-BI-PN-06 is a Network Interface Module from the DeltaV Smart Switch series.
It provides six Gigabit Ethernet ports, 24 V DC power input, DIN-rail installation, IP20 protection, and a wide operating temperature range, making it suitable for reliable use in industrial automation and DeltaV control networks.
Main brand :
ABB Allen-Bradley Alstom Bently GE MOOG
Schneider Woodward HIMA Honeywell Emerson Foxboro
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
Q&A of our advantages:
Q: What is our primary advantage in product availability?
A: Our offers a wide range of industrial automation products with a high level of availability, ensuring quick delivery and minimal downtime.
Q: How does our ensure competitive pricing?
A: Our provides competitive pricing by leveraging strong supplier relationships and optimizing its supply chain.
Q: What sets our customer service apart?
A: Our customer service is distinguished by its knowledgeable support team and commitment to providing timely and effective solutions.
Q: How does our handle product quality?
A: Our ensures product quality through rigorous testing and quality control processes, backed by reliable manufacturer partnerships.
Q: Can our assist with obsolete or hard-to-find components?
A: Yes, our specializes in sourcing obsolete and hard-to-find components, helping customers maintain and upgrade their systems.
Welcome to inquiry,my friend!
What is DCS？
A Distributed Control System (DCS) is a computer-based system used to automate, monitor and control complex industrial processes. It is essentially a large network of controllers that are distributed throughout a plant or facility, all working together to keep the process running smoothly.
Here’s a breakdown of how a DCS system works:
- Sensors:These devices collect data from the physical process, such as temperature, pressure, flow rate, and level.
- Controllers:These are programmable devices that receive data from the sensors and send control signals to actuators.
- Actuators:These devices take physical action based on the signals they receive from the controllers, such as opening or closing valves, starting or stopping pumps, or adjusting heater settings.
- Operator stations:These are the human-machine interfaces (HMI) that allow operators to monitor the process, make changes to setpoints, and troubleshoot problems.
- Communication network:This network connects all of the devices in the DCS system together, allowing them to share data and control signals.
